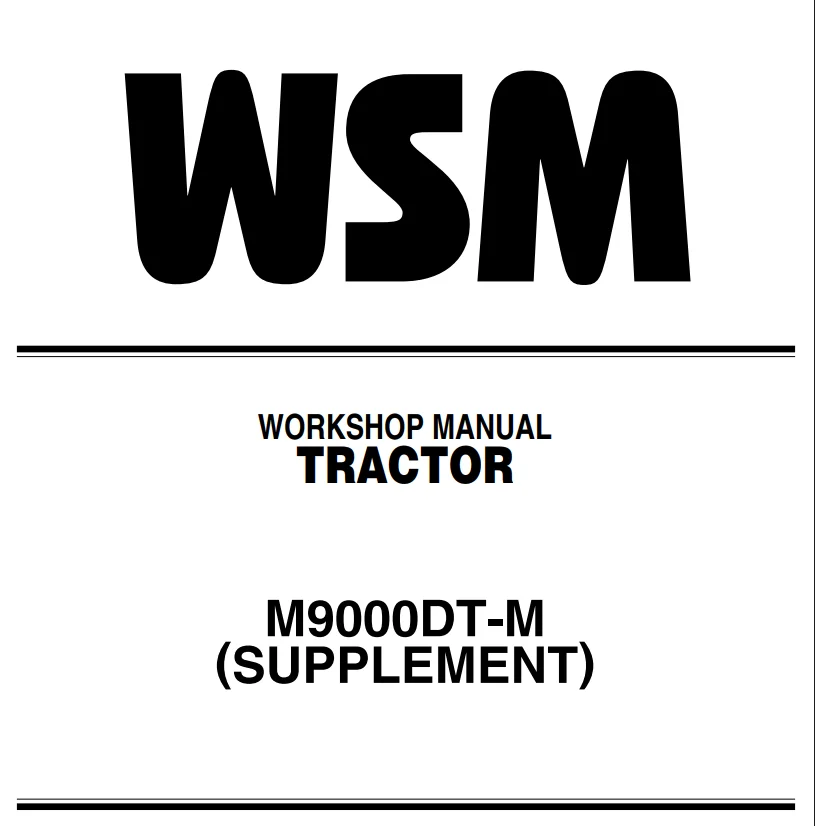

M9000DT-M, WSM SPECIFICATIONSSPECIFICATIONSNOTE: *Manufacture's estimate The company reserves the right to change the specifications without notice.W1028103ModelM9000DT-MStandard With 80 in. wide axleEngineModel V3300-TIE / V3300-TIE2Type Vertical, water-cooled, 4-cycle diesel engineNo. of cylinders 4Total displacement 3318 cm3 (202.5 cu.in.)Bore and stroke 98 × 110 mm (3.9 × 4.3 in.)Net power 67.2 kW (90 HP)*PTO power (factory observed) 59.7 kW (80 HP)* / 2600 min-1(rpm)Maximum torque 311 N·m (31.7 kgf·m, 229.4 ft-lbs) / 1400 to 1600 min-1(rpm)Battery capacity 12 V, CCA 1000AFuel Diesel fuel No. 1 [below −10 °C (14 °F)], Diesel fuel No. 2 [above −10 °C (14 °F)]Fuel tank capacity 90 L (23.8 U.S.gals., 19.8 lmp.gals.)Engine oil capacity 10.7 L (11.3 U.S.qts., 9.4 lmp.qts.)Coolant capacity 9.0 L (9.5 U.S.qts., 7.92 lmp.qts.)DimensionsOverall length 4060 mm (159.8 in.)Overall width (Minimum tread) 2010 mm (79.1 in.) 2470 mm (97.2 in.)Overall height (with ROPS) 2730 mm (107.4 in.)Wheel base 2250 mm (88.5 in.)TreadFront 1565 mm (61.6 in.), 1665 mm (65.6 in.) 1830 mm (72 in.), 1925 mm (75.8 in.),2025 mm (79.7 in.)Rear 1525 mm (60.0 in.), 1630 mm (64.2 in.) 1845 mm (72.6 in.), 1940 mm (76.3 in.)2045 mm (80.6 in.)Minimum ground clearance 642 mm (25.3 in.) DRIVE CASEWeight (with ROPS) 3240 kg (7143 lbs) 3320 kg (7319 lbs)TravellingsystemStandard tiresizeFront 13.6 - 38Rear 13.6 - 38Clutch Single dry plateSteering Hydraulic power steeringTransmission 12 forward and 12 reverse fully synchronized main and shuttle transmission with creepspeedBrake system Multiple wet disk mechanicalDifferential Bevel gears with diff. lock (Front, Rear)HydraulicsystemHydraulic control system Position, draft and mix controlPump capacity 64.3 L (67.9 U.S.qts., 56.6 lmp.qts.)/min.Three point hitch Category IIMaximumlifting forceAt liftingpoints2500 kg (5560 lbs) [ 3400 kg (7496 lbs) : with assist cylinder] at lower link end with linkshorizontal24 in.behind liftingpoint2100 kg (4630 lbs) [2900 kg (6393 lbs) : with assist cylinder]Remote hydraulic control One remote valveSystem pressure 19.6 MPa (200 kgf/cm2, 2846.6 psi)Traction system Swinging drawbar, adjustable in direction
