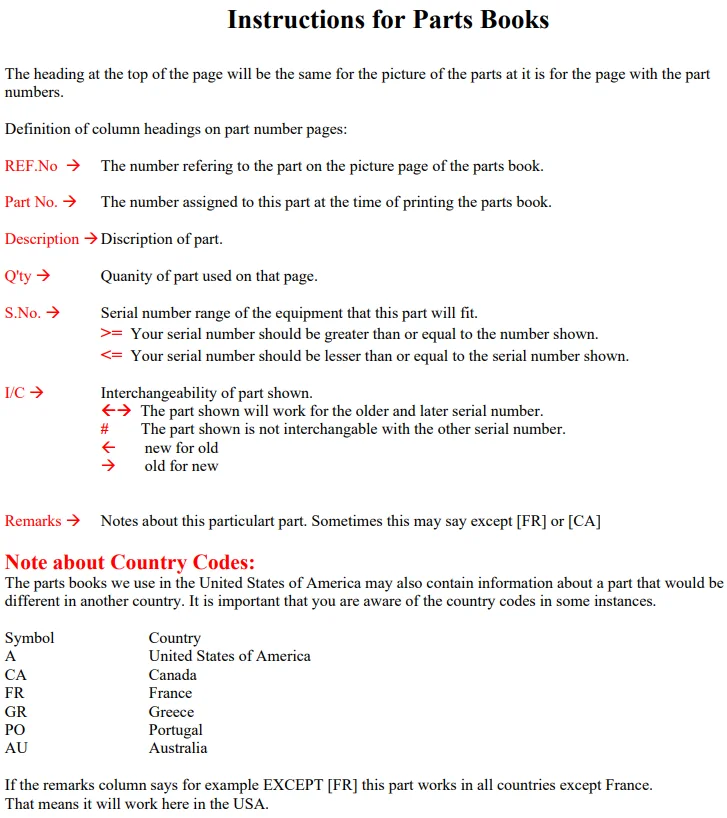

Part No. Rc48r_gf Book01001 Deck Components List #1 100z020201002 Deck Components List #2 100z020201003 Deck Components List #3 100z020201004 Gearbox Components 100z020201005 Driveshaft Components 100z020201006 Spindle Components 100z020201007 Safety Signs 100z020201008 Safety Sign Locations 100z0202 Ref.no Part No. Description Q'ty S.no. I/c Remarks Weight(Kgf)weight(Lb)1 65722-75151 Spacer 1/4 4 0 02 70080-01288 Spacer 1/2 2 0 03 70080-01289 Spacer 1 4 0 04 70050-94022 Wheel & Tire Assy 2 0 05 70080-00243 Pulley Deck Idler 1 0 06 70050-93913 Pin 7/16 Safety Lo 2 0 07 70050-94023 Arm Tension 1 0 08 70050-94024 Fork Wheel 2 0 09 75599-01325 Bolt 3/8 -16 X 1-1/ 4 0 010 75599-01535 Bolt 1/2 -13 X 1-3/ 2 0 011 75599-01555 Bolt 1/2 -13 X 2-3/ 4 0 012 75599-01700 Bolt 5/8 -11 X 5 2 0 013 75599-31013 Nut 3/8 -16 2 0.006 0.013214 75599-31015 Nut 1/2 -13 4 0.01 0.02215 75599-31935 Locknut 1/2 -13 2 0 016 75599-31937 Locknut 5/8 -11 2 0 017 75599-33013 Lockwasher 3/8 4 0.006 0.013218 75599-33015 Lockwasher 1/2 4 0.006 0.013219 75599-32115 Flatwasher 1/2 1 0.02 0.04420 70050-32015 Flatwasher 1/2 3 0 021 70050-93891 Bushing 1 0 022 70050-94025 Strut 2 0 023 70070-00181 Grease Fitting 2 0 0
