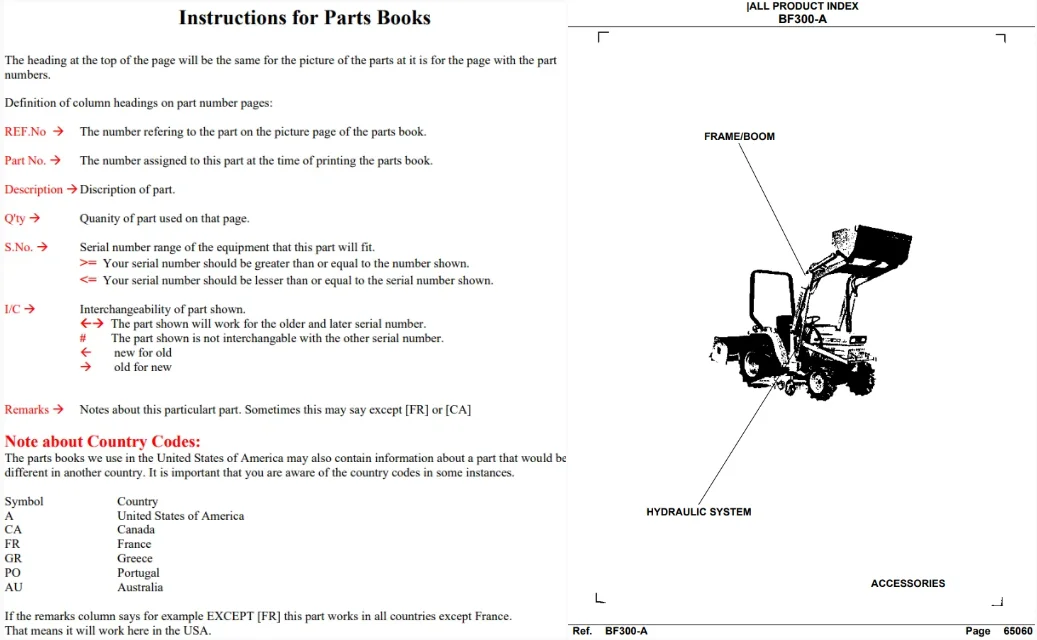

Item Part No. Description Book Frame/boom 01i0101 Main Frame/side Frame 100k005601i02 Boom 100k0056hydraulic System 01i03 Hydraulic Pipe/control Valve 100k005601i04 Control Valve [component Parts] 100k005601i05 Boom Cylinder [component Parts] 100k005601i06 Bucket Cylinder [component Parts] 100k005601i0702 Hydraulic Pipe 100k005601i09 Conversion Kit From Bf300-a To Bf300 (Option) 100k005601i10 Conversion Kit For B8200e (Option) 100k0056accessories 01i13 Accessories And Service Parts 100k0056 Ref.no Part No. Description Q'ty S.no. I/c Remarks Weight(Kgf)weight(Lb)010 70726-55110 Frame 1 <=54074 Orange 0 0010 70726-55710 Frame 1 >=54075 ¹ Deep Orange 0 0010 70727-25110 Frame 1 [wg] Orange 50 110010 70727-25710 Frame 1 ¹ [wg] Deep Orange 0 0030 01173-51230 Bolt 6 0.037 0.0814040 04512-50120 Washer,spring 6 0 0050 04015-50120 Washer,plain 6 0 0060 01173-51245 Bolt 4 0.049 0.1078070 04512-50120 Washer,spring 4 0 0080 04015-50120 Washer,plain 4 0 0090 70726-55410 Connector,housing 2 <=54074 Orange 0.71 1.562090 70727-55710 Connector,housing 2 >=54075 ¹ Deep Orange 0.655 1.441100 70727-55430 Spacer 2 <=54074 Orange 0.13 0.286100 70763-70510 Spacer 2 >=54075 ¹ Deep Orange 0.2 0.44110 04015-50100 Washer,plain 4 0.016 0.0352130 01133-51035 Bolt 8 0.03 0.066140 70726-56116 Frame,side Lh 1 <=54074 Orange 0 0140 70726-56710 Frame,side Lh 1 >=54075 ¹ Deep Orange 14.2 31.24150 99999-99999 Label,model 1 Non Sale 0 0160 70726-56140 Label,safety 1 0.001 0.0022160 70761-56210 Label,safety 1 [ca] French 0.001 0.0022160 70727-26140 Label,safety 1 [wg] 0.005 0.011170 70726-56137 Frame,side Rh 1 <=54074 Orange 0 0170 70726-56730 Frame,side Rh 1 >=54075 ¹ Deep Orange 16 35.2180 06613-10675 Nipple,grease 1 0.003 0.0066190 70726-56160 Label,lever Control 1 0.001 0.0022190 70761-56230 Label,lever Control 1 [ca] French 0.005 0.011190 70727-26160 Label,lever Control 1 [wg] 0.001 0.0022200 70726-56270 Label,caution 1 0.001 0.0022200 70761-56240 Label,caution 1 [ca] French 0.001 0.0022200 70727-26270 Label,caution 1 [wg] 0.002 0.0044210 99999-99999 Blank 0 0 0220 70726-56170 Connector,mast 2 <=54074 Orange 0 0220 70763-70810 Connector,mast 2 >=54075 ¹ Deep Orange 4.5 9.9230 70515-16330 Pin,spring 2 0.028 0.0616240 70761-56190 Bolt,wedge 2 0 0250 70726-56210 Nut,lock 2 <=51858 0 0250 70726-56212 Nut,lock 2 >=51859 ¬ 0.12 0.264260 70726-56230 Nut,lock 2 <=51858 0 0260 70726-56232 Nut,lock 2 >=51859 ¬ 0.05 0.11
