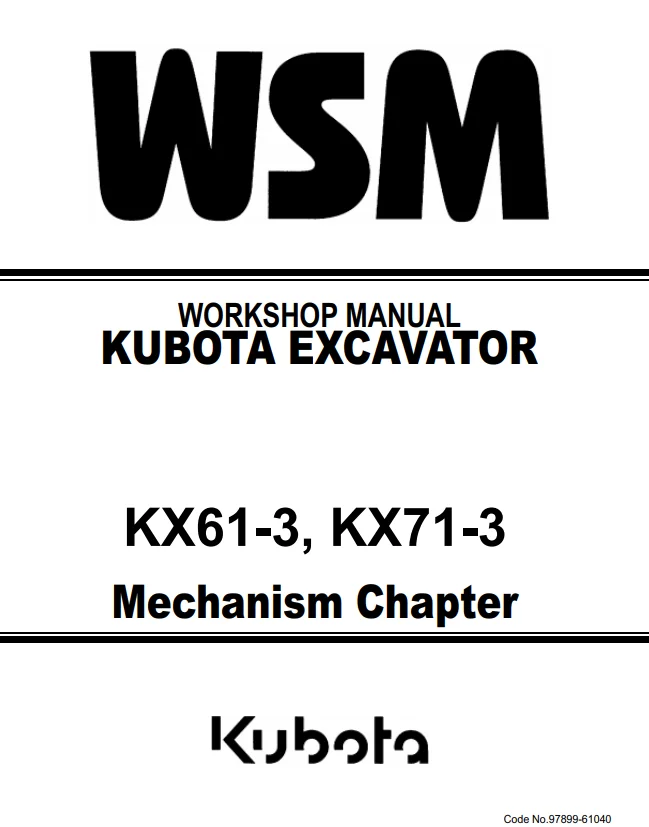

Kubota Excavator Models KX61-3 • KX71-3 Mechanism Chapter Workshop Manual Printed in Japan Code No.97899-60810 - Technical Manual

[Orangeiron]

Generala. Sales featureProduct concept : Comfort in conpact(1) Grade up the basic performance; Digging, filling back and lifting capacity(2) Grade up product feature to differentiate competitor; Digital meter, hose protectionWorkability Bucket digging force improvementVariable pump adoptionBoom and SP simultaneous operationThe maximum digging depth priorityHigh level stabilityMaintenance Blade hose divisionNew digital meter adoptionAmenity Much easier access into cabinCabin width expansionOperativity Straight travel adoptionSmoother operationSafety Engine safety startTravel lock systemROPS, FOPS standard equipmentb. Difference between KX61-3 and KX71-3Differentiation KX61-3 KX71-3 RemarkNo1. Engine V1505 (24.8 PS) V1505 (27.5PS)No2. Bucket digging forth 2190 kgf 2570 kgf Bucket cylinder is differentNo3. Working area (Arm length) 1300 mm 1350 mm Boom is differentNo4. New digital meter Equipped EquippedNo5. Variable track specification Not adopted Not adoptedNo6. Travel speed Two speed Two speedNo7. Straight travel Equipped EquippedNo8. Seat grade High back seat High back seatNo9. Roof window of the cabin Not equipped Not equipped​



[Orangeiron]

Technical manual attachment
